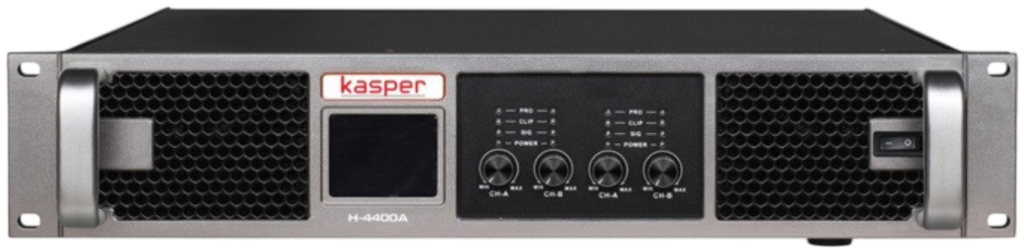

H-4400A
4 Channel Power Amplifier 400W / Class H-Amplifier
The Kasper H-4400A Class H Power Amplifier is a high-performance multi-channel amplifier designed for powerful and reliable audio output in demanding professional environments. With robust construction, flexible connectivity, and reliable cooling, these amplifiers are built to perform seamlessly across a wide range of installations, from medium venues to large-scale sound systems.
Specifications
| Description | Power Amplifiers: 2x1200 Watts Bridge Mode |
|---|---|
| Size | 2U |
| Number of Output CH | 4 |
| Output Connection Type | Speakon & Binding Posts |
| Output Configuration | 4x400W @ 8Ω |
| Max Output Power | 4x600W @ 4Ω |
| Input Power | 165W |
| Frequency Responses | 20Hz - 25kHz (-1dB, -3dB) |
| Input Impedance | 20kΩ (10kΩ unbalanced) |
| THD+Noise | <0.1% @1kHz Full Power |
| SNR | >85dB 20Hz-20kHz @ 1W/4Ω |
| Input Connection Type | XLR3, Balanced |
| Attenuators | Front Panel Knobs per Channel |
| AC Mains Requirement | 100-240V @ 50-60Hz |
| AC Main Connector | AC Socket Connector (IEC) |
| Dimensions (W*H*D) | 66 cm * 58 cm * 15.2 cm |
| Shipping Weight | 28 kg |
