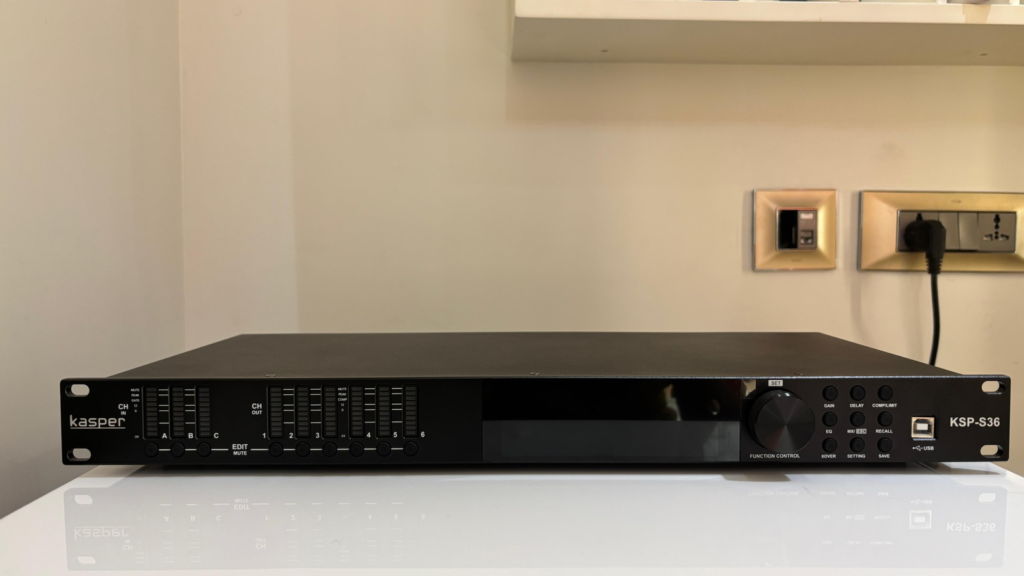

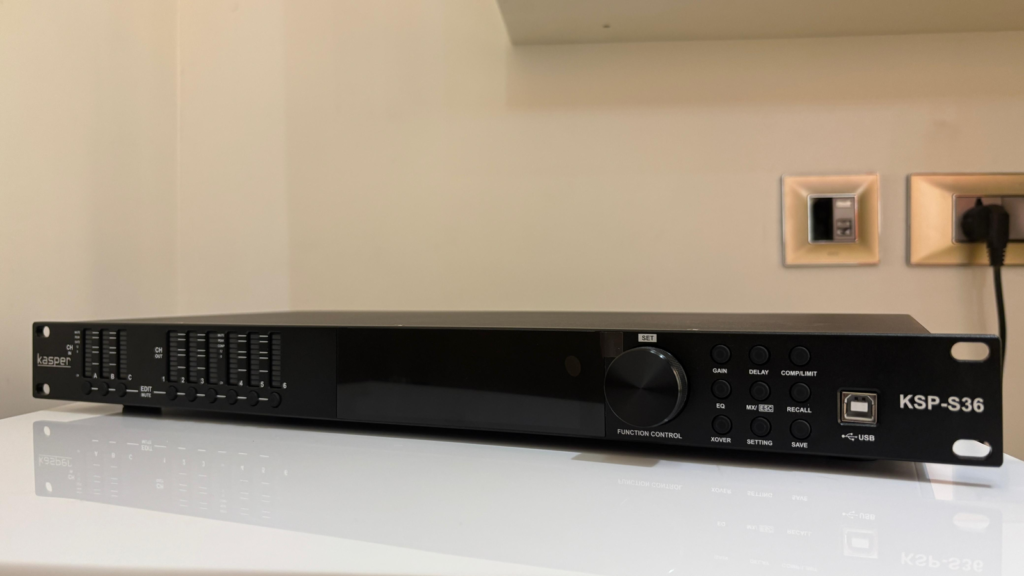

KSP-S36
3in 6out Full Display DSP Audio Processor routing supporting 64-bit floating-point optimiz
The Kasper KSP-S36 Digital Signal Processor is a powerful and precision-engineered audio processing solution designed for advanced sound system control and optimization. Equipped with high-performance dual DSP architecture, it delivers exceptional processing speed, accuracy, and flexibility, enabling detailed tuning and customization for professional audio environments.
- Auditoriums
- Live sound & events
- Houses of worship
- Recording studios
- Commercial installations
Specifications
| Size | 1U |
|---|---|
| Input | 3 |
| Total harmonic distortion (20Hz-20kHz@+4dBu) | <0.003% |
| Frequency response (20Hz-20kHz@+4dBu | Q+0/-0.3dB |
| Signal-to-noise ratio | 118dB A-weighted |
| Noise floor | <-90dBu |
| Dynamic range (20Hz-20kHz, 0dB) | >116 dB |
| Maximum gain (input to output) | 48dB |
| Maximum delay (input to output) | 1360ms |
| Channel separation (between channels@1kHz) | >80dB |
| Common mode rejection ratio | 60Hz>100dB@+20dBu |
| Input impedance (balanced/unbalanced) | Bal: 20K / Unbal: 10K |
| Output | 6 |
| Output impedance (balanced/un balanced) | Bal: 100ohm / Unbal: 50ohm |
| Input gain range (adjustable) | -80dB+12dB |
| Output gain range (adjustable) | -80dB~+12dB |
| A/D chip | AK5552 |
| A/D sampling rate | 768kHz |
| A/D converter bit width | 32bit |
| D/A chip | CS4396 |
| D/A sampling rate | 192kHz |
| D/A converter bit width | 24bit |
| DSP chip | ADSP-21571*Dual |
| DSP main frequency | 500Mhz |
| DSP bit width | 32/40/64-bit floating point dual-core SHARC+ARMCortex-A5TM core |
| Power consumption | 220V 22 watts |
| Dimension ( WxHxD ) | ( 483mm/ 19.01'’ x 45mm/ 1.77'’ x 205mm/ 8.07'’ ) |
