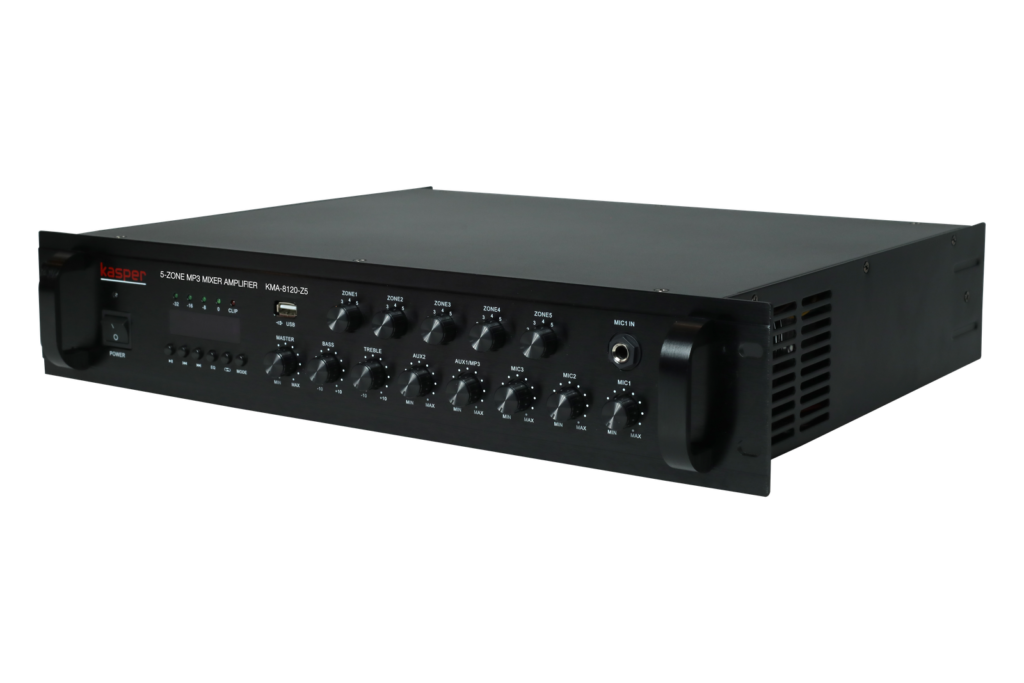

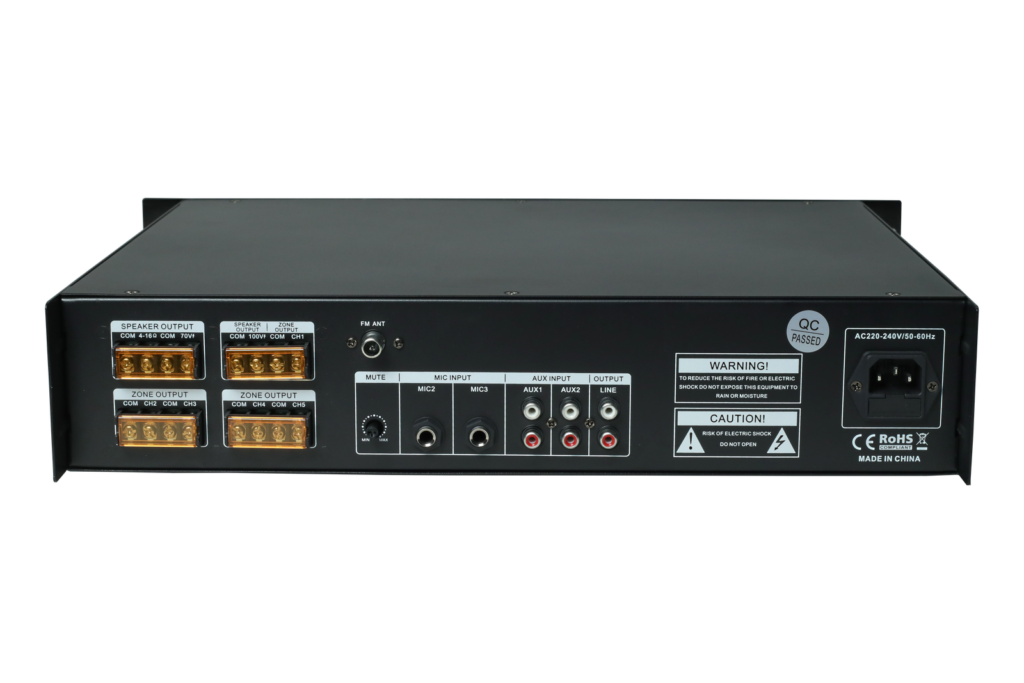

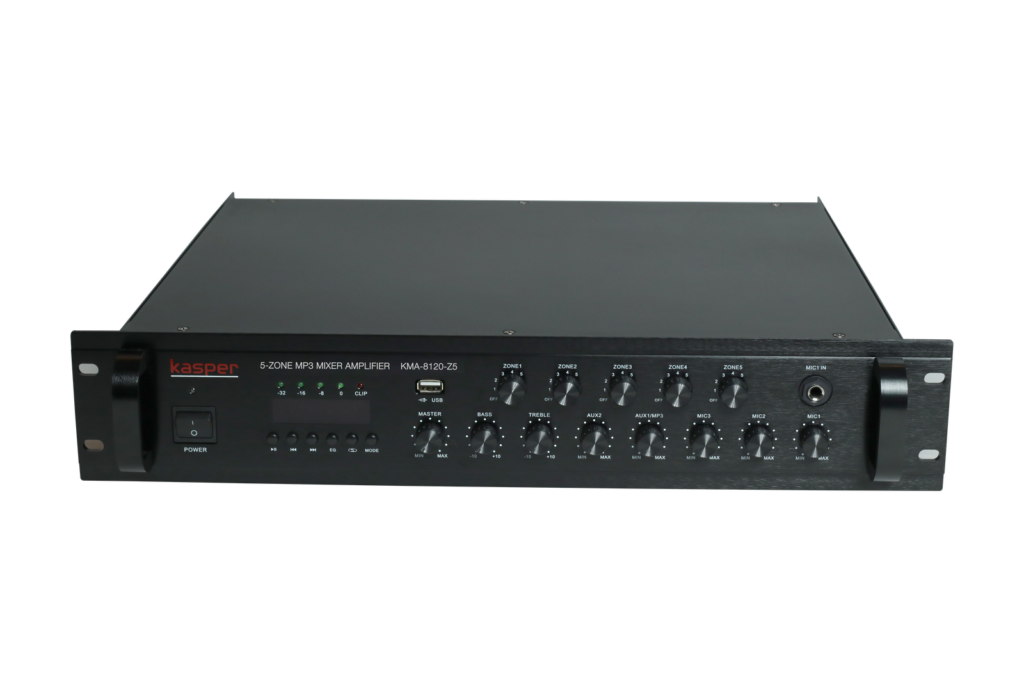

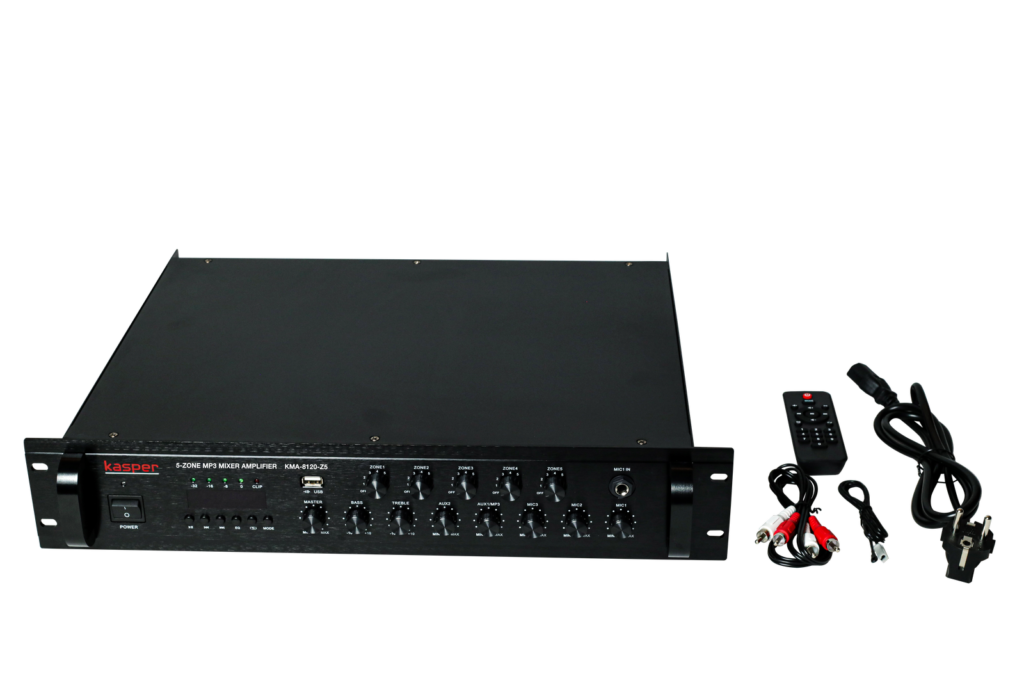

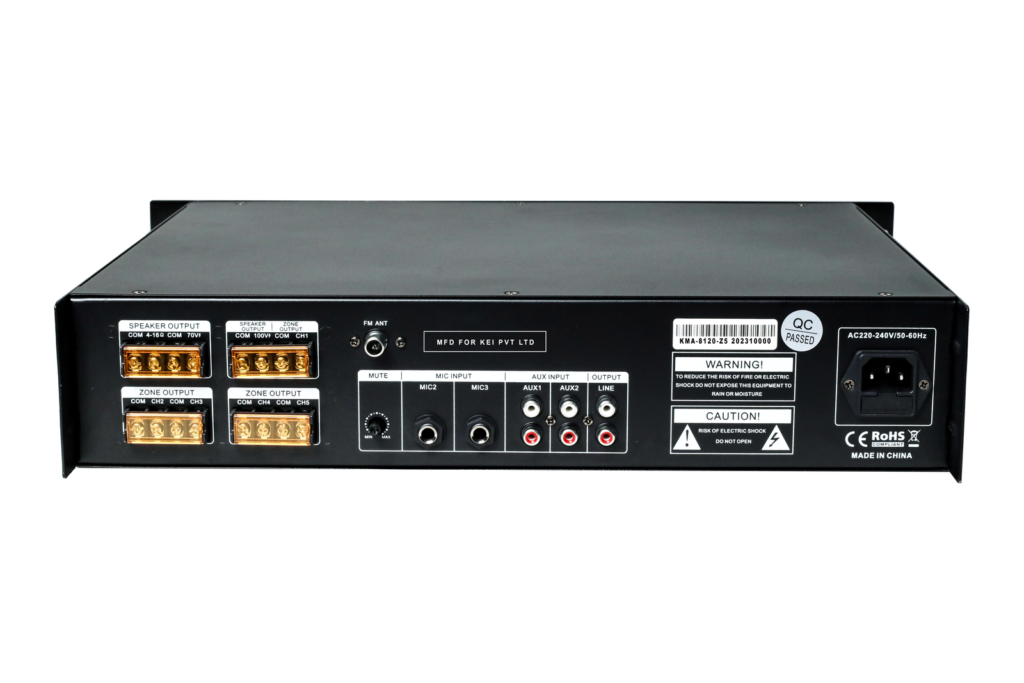

KMA-8120-Z5
120W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth
The KMA-8120-Z5 is a versatile and high-performance 120W mixer amplifier designed for professional audio distribution. Combining a built-in MP3 player, FM tuner, and Bluetooth connectivity, it provides an all-in-one solution for managing multi-zone audio with ease and precision.
- Retail
- School
- Restaurants
- Offices
- Public Address System
Specifications
| Rated output power | 120W |
|---|---|
| Output | 70V 38Ω |
| AUX output level | 0.775V (0dBV) |
| 5 Zone Output | 100V |
| Extra Input | SD slot, USB slot, RCA connector |
| Frequency response | 60Hz-15KHz (±3dB) |
| T.H.D. | <0.5% at 1KHz, 1/3 rated output power |
| Muting Function | MIC1 overrides other input signals at 0~30dB |
| Controls | Volume, tone/treble, mute, power |
| Cooling Fan | DC 12V FAN |
| LED indicator | AC: POWER, level: 2、4 6、8 10 |
| Power supply | AC220~240V, 50-60Hz |
| Power consumption | 185W |
| Power cord | (3×0.75 mm2)×1.5M (standard) |
| Product dimension (mm) | 89(H)×483(W)×366(D) |
| Packaging dimension (mm) | 185(H)×520(W)×435(D) |
| Net weight (kg) | 11.5 |
| Packaging weight (kg) | 13.10 |
