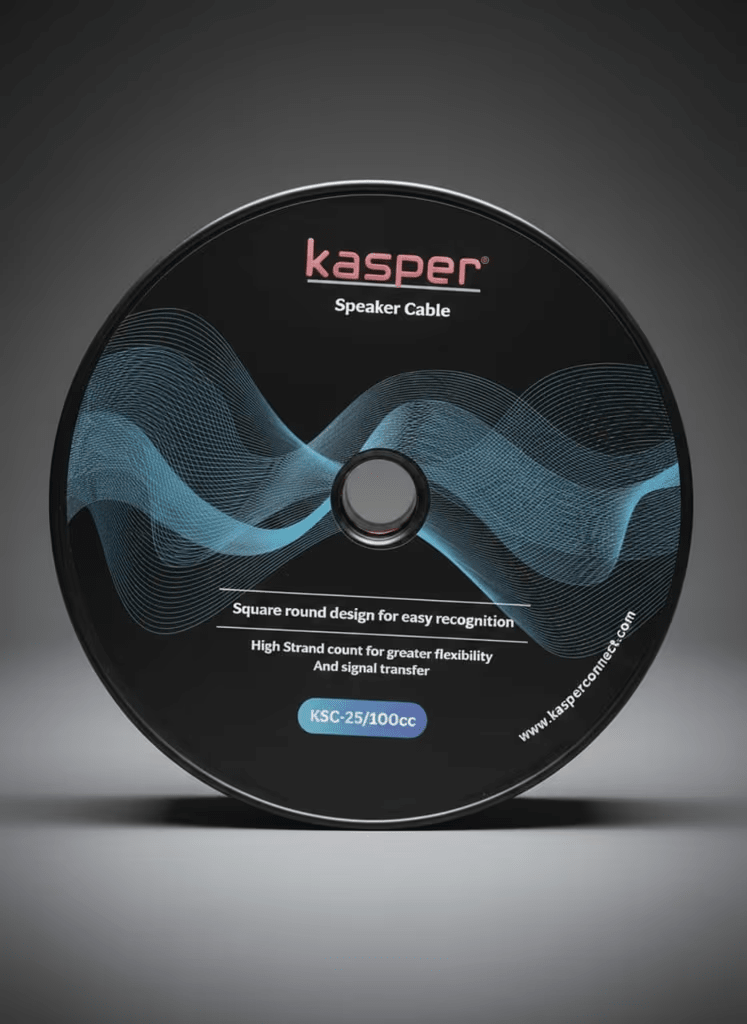

KSC 25/100cc
2.5 mm2 · 100 Mtrs · Matt White
Specifications
| KSC-15/100 | |
|---|---|
| Cable Name | 1.5mm2/15AWG Speaker Cable |
| SPECIFICATION | (7/20/0. 115OFC+PVC)*2F OD: 3.2*6.4mm Matt White |
| LENGTH | 100Meters/Minimum |
| Qty/Carton | 2 Spools |
| SPOOL SIZE | PK-200*100*120*5mm |
| Net Weight | 10.1 Kgs |
| Gross Weight | 10.5 Kgs |
| SPOOL STICKER | YES |
| In Wall | YES |
| Measure | 0.47' |
| Conductor | 7/20/0.115 · OFC · OD 1.78mm+0.1 |
| Jacket | Matt White · PVC · thickness 0.71mm±0.1 · OD 3.2*6.4mm + 0.1 · Parallel Round/ Square |
| Printing | Yes |
| Printing Text | KASPER-1,5mm2/ 15AWG HIGH DEFINITION SPEAKER CABLE-HIGH PURITY OXYGEN FREE COPPER > > > + > > > + |
| Computer jet printing | 00m II 00m~99m II 99m |
| Conductor Resistance | 0.01335 Ω/M |
| capacitance | 61.91 PF/M |
| Inductance | 1.2853 µH/M |
| KSC-17/100 | |
| Cable Name | KSC-17/100 |
| SPECIFICATION | (7/13/0. 115OFC+PVC)*2F OD: 3.0*6.0mm Matt White |
| LENGTH | 100Meters/Minimum |
| Qty/Carton | 4 Spools |
| SPOOL SIZE | PK-200*100*120*5mm |
| Net Weight | 15.8 Kgs |
| Gross Weight | 16.7 Kgs |
| SPOOL STICKER | YES |
| In Wall | YES |
| Measure | 0.89' |
| Conductor | 7/13/0.115 · OFC · OD 1.43mm+0.1 |
| Jacket | Matt White · PVC · thickness 0.78mm+0.1 · OD 3.0*6.0mm + 0.1 · Parallel Round/ Square |
| Printing | Yes |
| Printing Text | KASPER-17AWG HIGH DEFINITION SPEAKER CABLE-HIGH PURITY OXYGEN FREE COPPER > > > + > > > + |
| Computer jet printing | 00m II 00m~99m II 99m |
| Conductor Resistance | 0.02015 Ω/M |
| capacitance | 64.76 PF/M |
| Inductance | 1.34 µH/M |
| KSC-25/100 | |
| Cable Name | 2.5mm2/13AWG SPEAKER CABLE |
| SPECIFICATION | (7/35/0. 115OFC+PVC)*2F OD: 4.0*8.0mm Matt White or Matt Pearl Champagne |
| LENGTH | 100Meters/Minimum |
| Qty/Carton | 2 Spools |
| SPOOL SIZE | PK-200*100*180*5mm |
| Net Weight | 16.3 Kgs |
| Gross Weight | 17.3 Kgs |
| SPOOL STICKER | YES |
| In Wall | YES |
| Measure | 0.66' |
| Conductor | 7/35/0.115 · OFC · OD 2.36mm+0.1 |
| Jacket | Matt White or Matt Pearl Champagne · PVC · thickness 0.82mm+0.1 · OD 4.0*8.0mm + 0.1 · Parallel |
| Printing | Yes |
| Printing Text | KASPER-2.5mm2/ 13AWG HIGH DEFINITION SPEAKER CABLE-HIGH PURITY OXYGEN FREE COPPER > > > + > > > + |
| Computer jet printing | 00m II 00m~99m II 99m |
| Conductor Resistance | 0.00802 Ω/M |
| capacitance | 68.15 PF/M |
| Inductance | 1.1294 µH/M |
