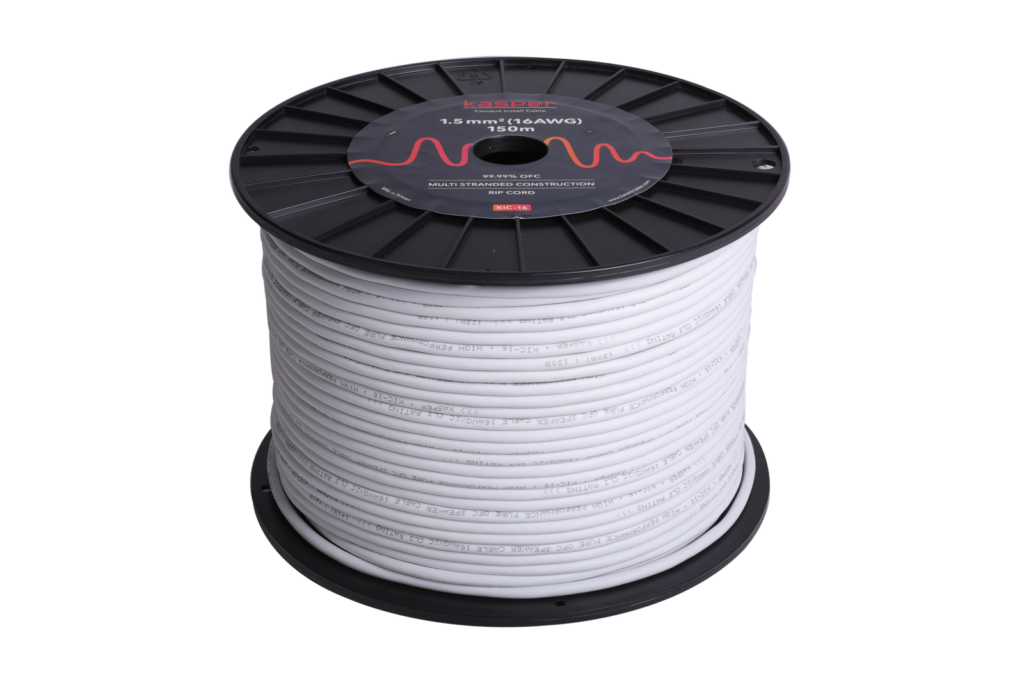

KIC-16/150
1.5 mm2 · 150 Mtrs · Matt White
Specifications
| Cable Name | KIC-16 |
|---|---|
| SPECIFICATION | [(65/0. 16OFC+PVC)*2C+Paper+Ripcord+PVC]*1C OD:5.3mm Matt White |
| LENGTH | 150Meters/Minimum |
| Qty/Carton | 2 Spools |
| SPOOL SIZE | PK-250*125*160*6mm |
| Net Weight | 16.2 Kgs |
| Gross Weight | 16.9 Kgs |
| SPOOL STICKER | YES |
| In Wall | YES |
| Measure | 0.93' |
| Conductor | 65/0.16 · OFC · OD 1.49mm+0.1 |
| Insulation | Red/Black · PVC · thickness 0.28mm+0.1 · OD 2.05mm+0.1 · Round |
| Shield | Paper · thickness 0.03mm+0.1 · OD 4.21mm+0.1 |
| Assist | Rip Cord · Tetolon Line |
| Jacket | Matt White · PVC · thickness 0.98mm+0.1 · OD 5.3mm+0.1 · Round |
| Printing | Yes |
| Printing Text | >>>KASPER ▪ KIC - 16 ▪ HIGH PERFORMANCE PURE OFC SPEAKER CABLE>>> |
| Computer jet printing | 00m II 00m.....149ml l149m |
| Conductor Resistance | 0.0216 Ω/M |
| capacitance | 107.89 PF/M |
| Inductance | 1.2024 µH/M |
